TransformerHub H16C Pro – USB-C Version

SKU: THH16C-C

Charge Only!

For up to 16 devices

The Formcase TransformerHub series is a premium product line from the Formcase brand, ranging from small electronics of up to 10 units to large electronics of up to 20 units. In between there is an additional product line, the Performance product line. Formcase Performance products are extremely powerful electronics. Performance products from Formcase reach a power of up to 60W per USB-C port.

All Formcase electronics have an on/off switch and an integrated active ventilation system for optimal cooling. Thanks to the intelligent charging technology, a timer is no longer necessary, as the Formcase electronics automatically control the charging cycle. Formcase electronics are made exclusively from the highest quality materials and ensure consistent weight optimisation due to optimal material composition. All in all, the perfect solution for your digital classroom.

Capacity

Up to 16 devices

Hubs

Charge by USB (12W)

USB Port

USB-C Version

Brand

Charge via USB (12 W) | Charge only

Filter by charging capacity

Up to 12W per port

devices

Android Devices

,

IOS Devices

Functions

Features

  • Intelligent USB charging electronics with automatic charge termination

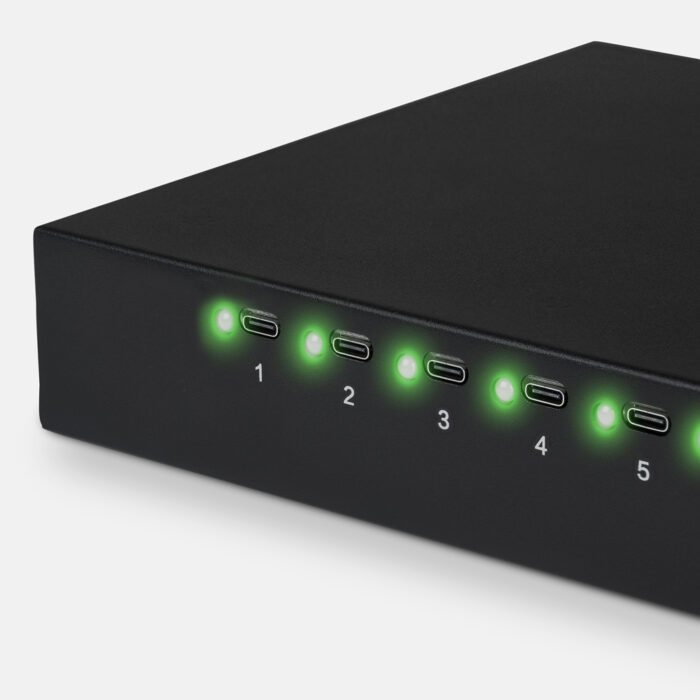

  • Integrated LED charging status indicator for each USB port
    • Red – charging mode / Green – fully charged
  • Charge Only! for 16 devices simultaneously (also available as Sync version)
  • Synchronisation function via USB master port (optional)
  • Automatic charge regulation
  • Compatible with all devices that can be charged via USB (12W)

Functions

  • Charging via USB-A or USB-C
  • Optional: Synchronisation via Apple Configurator

Technical Specs

Dimensions (L/W/H) Length 440 x Width 200 x Height 44mm
Weight 2,3 Kg
Cooling Passive cooling system
LED Charging Status Indication Yes, Charging-> red, – Fully charged-> green
Charging Power / Current 16-port USB-C intelligent charging hub with automatic charging cut-off & charge distribution
(No timer necessary) -> Also works as overheating and overcharging protection
Up to 5V, 2.4A (12W) per USB port – 100 – 240 V – 50/60 Hz – Total power: 200W Integrated On/Off – (I/O) switch
Synchronisation No
Data Transfer No
Device Compatibility Apple iPads + Android Tablets
Connections Inside + Outside Outside: IEC Socket
Labelling Option Yes
Cable Management Yes
Material Sheet metal + FR-ABS
Delivery Scope: 1x 2m Power cord – (Version depending on the country)
1x Manual
Applied Standards DIN EN 55022 / DIN EN 61140 / DIN EN 55024 / DIN EN50581 / DIN EN62368-1
Certificates CE / RoHS / REACH
Customs Tariff Number 85044083
Warranty 1 year manufacturer‘s warranty
(Warranty extension optionally available)
Country of Manufacture China

Compatibility
