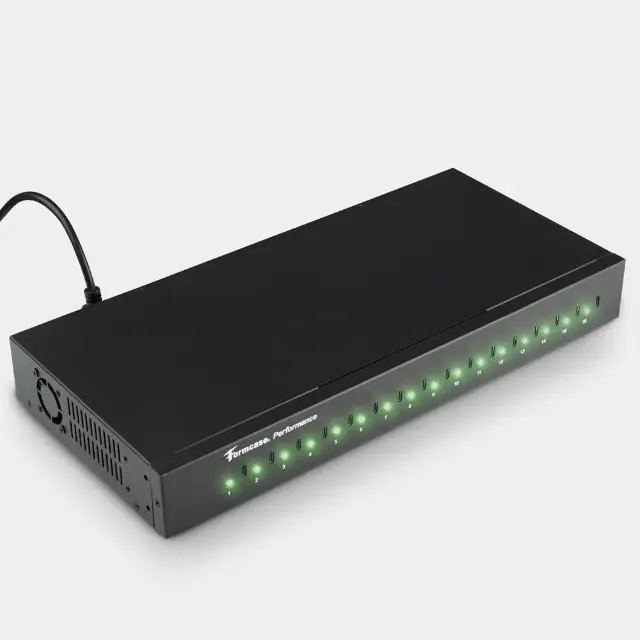

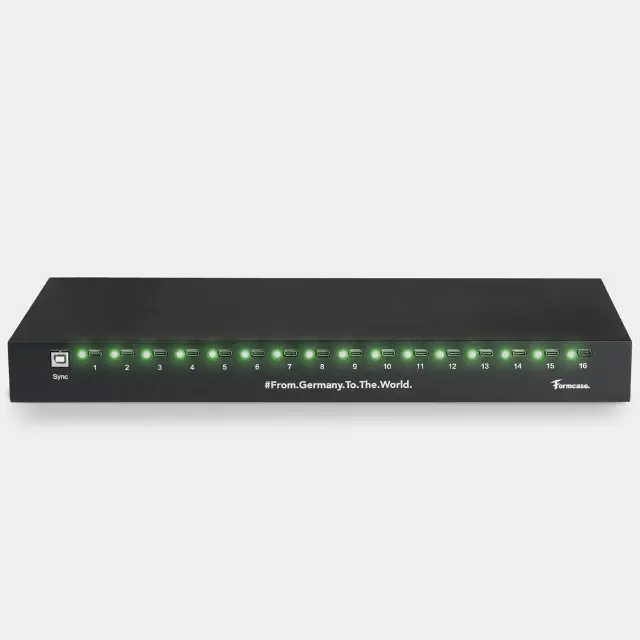

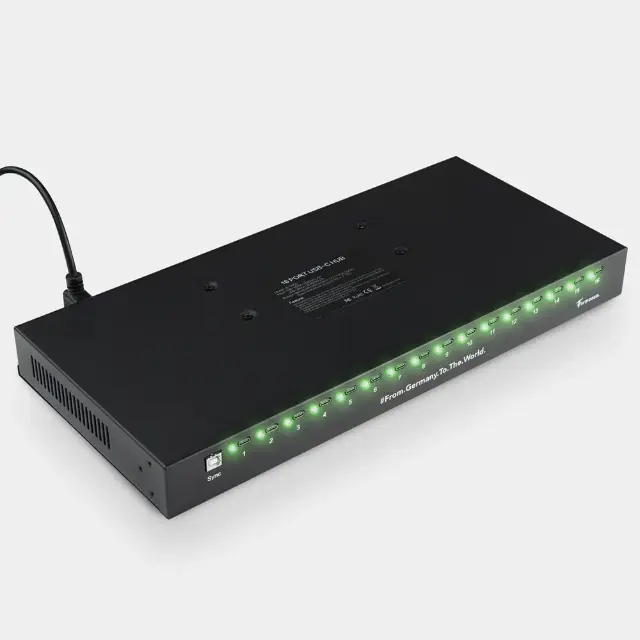

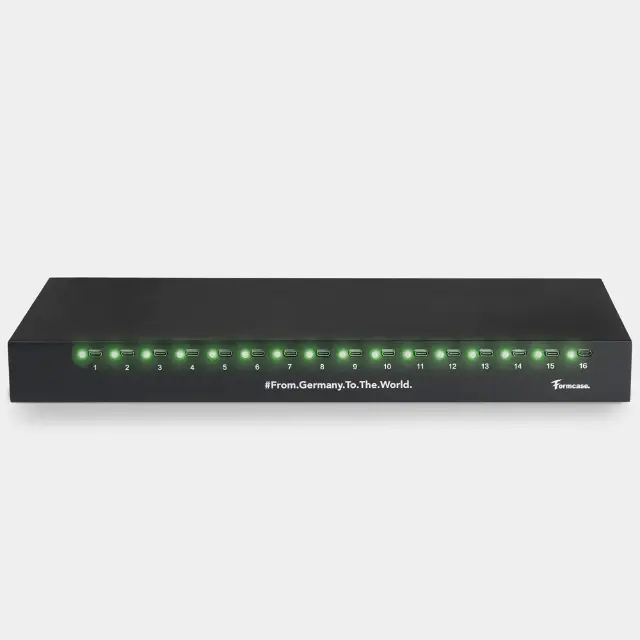

TransformerHub H16 Pro
Sync and charge hub for up to 16 tablets.

Everything inside the TransformerHub H16 Pro.
Sync and charge hub for up to 16 tablets.

Up to
tablets at once
Up to
USB-C charging per port
Charge and sync. Manage iPads with Apple Configurator

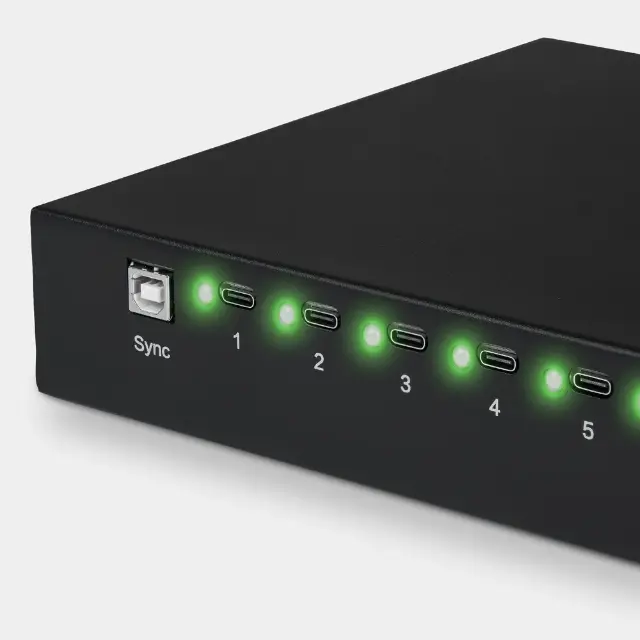

LED status: red charging, green full
Automatic charge control
Every port shows when it’s done.
One LED per port: red while charging, green when full. See at a glance which device is ready – without checking each one.
Full? Time to sync.
iPads can be synced with Apple Configurator.
Every iPad. One Mac.
Apple Configurator.
Connect the TransformerHub H16 Pro to a Mac via its USB sync port. Apple Configurator shows every connected iPad at once – so you can roll out apps, profiles and updates in one go while everything charges.
- 1Connect a Mac via USB
- 2Open Apple Configurator
- 3Set up every iPad at once
Apple Configurator is a free app from Apple for the Mac.
Cool.
Even at full load.
Active ventilation carries the heat away while up to 16 devices charge at once – for stable charging power and batteries that last.

TransformerHub H16 Pro
Sync and charge hub for up to 16 tablets.
- Sync via Apple Configurator
- Up to 12 W per port
- LED status: red charging, green full
- Automatic charge control
Device charging cables are not included – available separately.
No checkout: you get a tailored quote, usually within one working day. Questions? +971 58 691 3712 · [email protected]
Description
The Formcase 16-Port USB-C Sync & Charge Hub is the ideal solution for environments that require both secure synchronisation and fast, reliable charging of Apple iPads. Designed for educational institutions, healthcare and corporate IT, this device offers smart charging at 12 W per port as well as full compatibility with Apple Configurator for seamless device management and deployment.
This compact and robust device features a passive cooling system, a total output of 200 W and LED indicators for each port. The LEDs light up red during charging and switch to green as soon as the respective device is fully charged. Synchronisation and data transfer take place via the supplied USB sync cable at speeds of up to 480 Mbit/s, so that updates, configurations or app installations can be carried out efficiently on all connected iPads.
Made from robust sheet steel and FR-ABS, the hub is designed for intensive daily use. Integrated cable management and labelling options ensure a clear and tidy organisation. Ideal for IT administrators who want to charge, manage and synchronise multiple iPads via a central solution.
General data
| Dimensions (L × W × H) | 440 × 200 × 44 mm |
|---|---|
| Weight | 2.3 kg |
| Material | Sheet steel + FR-ABS |
| Country of manufacture | China |
Safety & cooling
| Cooling | Passive cooling |
|---|
Charging functions
| LED charging indicator | Yes – red: charging, green: fully charged |
|---|---|
| Charging power | Intelligent 16-port USB-C charging hub with automatic charge cut-off and load balancing |
| Output power | Up to 5 V/2.4 A (12 W) per USB port – 100–240 V – 50/60 Hz – total output 200 W – integrated on/off switch |
Data & synchronisation
| Synchronisation | Yes, via Apple Configurator |
|---|---|
| Data transfer | Up to 480 Mbit/s |
Compatibility & features
| Device compatibility | Apple iPads |
|---|---|
| Labelling | Yes |
| Cable management | Yes |
| External connections | IEC power inlet |
Scope of delivery & certifications
| Scope of delivery | 1 × power cable 2 m (country-specific), 1 × user manual, 1 × sync cable (USB), device charging cables not included (available separately) |
|---|---|
| Applied standards | DIN EN 55022 / DIN EN 61140 / DIN EN 55024 / DIN EN 50581 / DIN EN 62368-1 |
| Certificates | CE / RoHS / REACH |
| HS code | 8517623500 |
| Warranty | 2-year warranty |
More Charging hubs

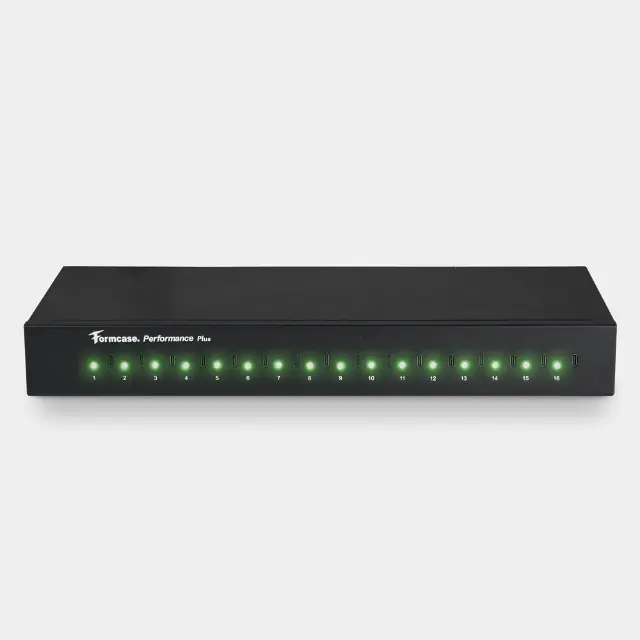

TransformerHub H16-PD Perf. PlusUSB hub with 65 W USB-C PD for up to 16 devices.View details ›
TransformerHub H16C ProUSB-C charging hub for up to 16 devices.View details ›
TransformerHub H16PD PerformanceUSB-C PD hub for 16 devices at up to 30 W per port.View details ›

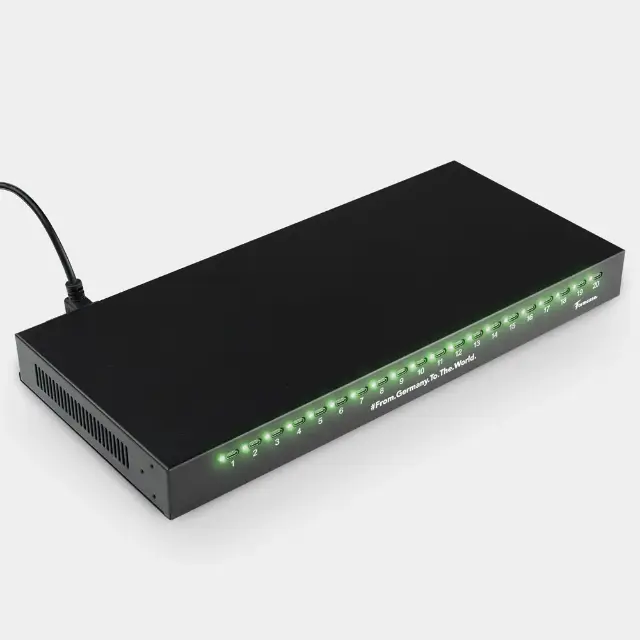

TransformerHub H20C ProUSB-C charging hub for up to 20 devices.View details ›Ready for your quote?
